Ruby Insert Fog Nozzles - FINE FOG  for Aeroponics

Cat : RI Serie.pdf
316 SS body with Brass insert and ruby orifice

Download GA - Series 8.pdf
Download-  3m Tubing System pdf
Download - Aeroponic Pump skid.pdf

Our Ruby Insert Nozzles RI-series are widely used  to fog humidity conditions in Mushroom delicate farming process.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player


Aeroponics to fog the roots of vegetables with nutrients.

High pressure nutrient based water at 50 to 70 bar jet against an impingement pin of equal diameter of RI-50 ruby insert nozzles producing billions of 1 to 15 micron droplets.

his high pressure RI nozzle aeroponic is self sustaining with 90% less water than usual farming, totally organic with no chemical or pesticides.

With adequate LED lighting, Aeroponic enhances fast and high yield vegetable production.
In Orchid nurseries, where the nutrients are discharged as fog to be absorbed by its roots .
Organic Mushroom Farming in high Fog density, low temperature controlled environment
RI series  is constructed of 316 stainless steel body with brass insert holding the ruby orifice

Serie 8 is constructed of 316 stainless steel body with 316 SS insert holding the ruby orifice, hence withstand higher pressure
Download Price List -  Low pressure Household Mist.pdf

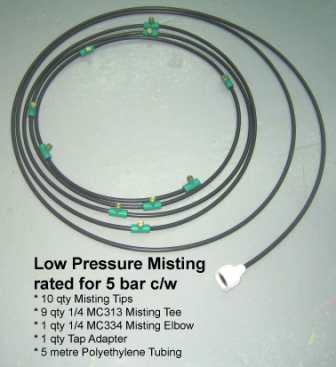

low pressmsitLow cost package at S$50 per assembly
For connection to household tap rated for 5 bar consist of  ;
1_4MC334
1 qty : 1/4MC334
      Misting Elbow
 1 qty : Misting Tip
low presfit
9 qty : 1/4MC313
        Misting Tee
9 qty : Misting tip.
tapadapter
5 metre of Polyethylene tubing
1 qty:Tap adapter
     1/4 x 3/4 FHT
Hydroponics for Vertical farming with low pressure drip / mist
Download Price List -  Low pressure Household Mist.pdf
Air Atomiser for Dry Fog
AirAtomiser5 AirAtomiser4
Adjustable air atomising assemblies combines air and liquid by knob adjustment. By changing the spray tip setup, different spray pattern such as full cone, hollow cone and fan can be attained without changing the body assembly.
Material : 316 stainless steel or brass.
Size :1/4"NPT(F) air & liquid inlets.
Cat : SUE18A Cat
SUE18A

Multi-Head Mist
Agric Mist

Brass casted Multi-head misting for Agriculture and urban farming. Size : 1/4 inch Female NPT with 2mm orifice

Pressure from 1 to 15 bar (max) for >150 microns discharge

Agri 4 tip Agri 3 tip Agri 2 tip
Agric 4 tips Agric 3 tip Agric 2 tip
Agri Mist 4 Head Agri Mist 3 Head Agri Mist 2 Head
Stainless steel seamless tubing
Download Price : 3m System Price List. pdf
Download - Low pressure Household Mist for.pdf
