Flat Fan Spray Nozzles - F Series
Solid Stream

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

Type F Flat Fan are the most widely used flat fan nozzle because of its large flow range,
spray angles, sizes and materials.
Size : 1/8" to 3" BSP / NPT,
Spray angles: 0 to 120
Material: PVC, Brass, 316 Stainless Steel
Capacities range : 0.06 l/min to 230 l/min

DOWNLOAD CATALOGUE - F_Series.pdf

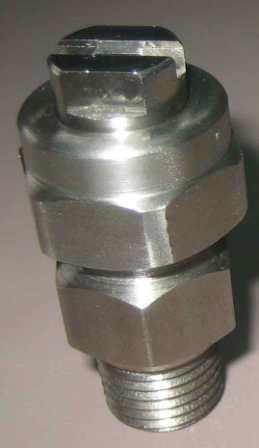

4 PIECE INTER-CHANGEABLE FAN TIP NOZZLE
4P Fan photo

Download Cata : 4P Fan

Material : 303 stainless steel

Four (4) piece construction consisting of Body, internal steel mesh strainer, Fan tip and Cap.

Inter-changeable spray tip angle from 0 to 110 degrees

Size : 1/4 or 3/8 inch (Male) BSP or NPT
Pattern :  0 to 110 degrees FAN

Short Length Fan Spray Nozzles
short 1

DOWNLOAD CAT - FS.pdf

Material: 316 S.S, Brass ,

Type FS Flat Fan Nozzles are used where space is constrain and length of installation is limited.
Conn: 1/2" to 2" BSP / NPT,
Spray angles: 0° to 120°

TANK COOLING NOZZLES  -145 degrees FAN
Large Angle Deflection Principle – Type FW

FW flat jet nozzles work on the deflection principle conveying a stream of water onto a machined deflecting surface, producing a wide angle flat spray pattern having low impact value and small droplets. Their round orifice minimises the risk of clogging.

Typical Applications:- Producing Fire Curtain, Ship side cooling, bulk head cooling, Oil Rig Hull Cooling and washing of vertical surfaces, washing fruits, stones or any such material on a moving conveyor.

Connection: 1/8" to 1" BSP or NPT
Spray angles: 90 to 140
Material: PVC, PP, 316 Stainless Steel, Brass

DOWNLOAD CATALOGUE - FW_Series.pdf
WATER CURTAIN HORIZONTAL 150 degrees Flat Fan
WC Series Water Curtain Nozzle distributes water in a flat curtain with 150 degrees Fan spray.

Water Curtain Nozzle when mounted in pendent position acts as a window spray nozzle. The nozzles when mounted in horizontal position with flow towards ground
Size : 1/2" or 3/4 inch Male NPT, BSP
Material :Brass, Stainless Steel

Download Catalogue - Water Curtain.pdf
WATER CURTAIN HORIZONTAL 240 /300 degrees Fan
WILTEX Series of Water Curtain Horizontal Flat Fan Spray designed for 240 degrees Fan and 300 degrees Fan. With a K factor of 23 and K-27 has an external deflector which discharges water in a horizontal flat circular shaped pattern of small droplet size.
Mounted horizontally to uniformly distributed water spray to form a water wall over the surface to be protected.

Application : Water droplet wall to prevent dust inflow,
mitigation of fumes or inbound toxic gas or wall curtain
WILTEX 300 FLAT FAN
Size : 1/2" (M) NPT or BSPT
Spray angle : 300 deg Flat Fan
Material : brass or stainless
steel
Download Catalogue
Wiltex 300 Flat.pdf
WILTEX 240 FLAT FAN
Size : 1/2" (M) NPT or BSPT
Spray angle :240 deg Flat Fan
Material : brass or stainless steel
Download Catalogue
Wiltex 240 Flat.pdf
