TANGENTIAL HOLLOW CONE



6 inch Cast 316SS

2 inch Cast 316SS

DOWNLOAD CAT : WE.pdf

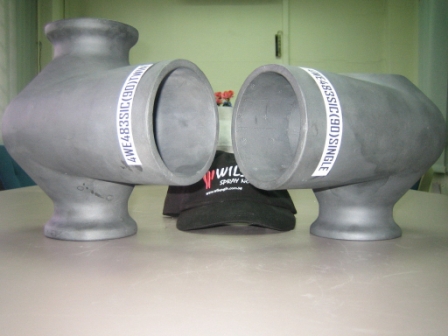

Tangential Full Cone - Type WE Cast

Designed to deliver large volumes at low pressure while still maintaining spray pattern and liquid distribution.
Typical Applications - coke quenching, cooling and scrubbing of gas, slurry absorber FGD towers
Connection: 2 inch to 4 inch,

Spray angles: 60°, 90°, 110°, 120°
Material: Carbon Steel, 316 Stainless Steel and Silicon Carbide ,

DOWNLOAD CATALOGUE - WE.pdf
Tangential Full Cone - WZ Metal / Plastic

Tangential Right Angle Full / Hollow Cone spray.
Connection: 1/8 inch to 3/4 inch,
Spray angles: 90° and 120°
Material: Brass, 316 Stainless Steel and Plastic,

DOWNLOAD CATALOGUE - WZ Tangential
5 piece HOLLOW CONE

Type : 5P- Hollow Cone

Consist of five (5) parts where the centrifugal force inside the whirl chamber provides the energy for liquid breakup. The internal vanes rotate rapidly to allow precise small flow control in hollow cone spray pattern.
Typical Applications: gas and smoke scrubbing, cooling of large tanks
Connection: 1/2" to 2 1/2" BSP or NPT,      Spray angles: 60° to 100°
Material: 316L Stainless Steel.
