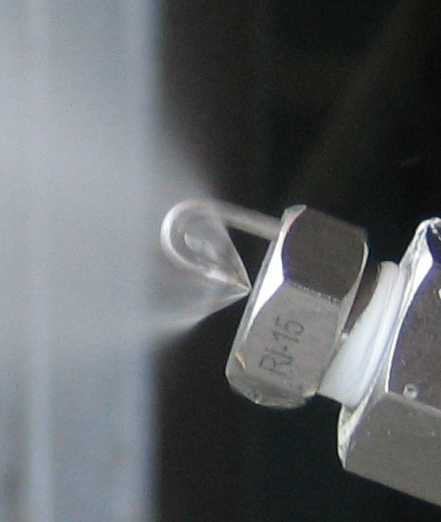

Ruby Insert Fog Nozzles - FINE FOG  in Critical Mass



H2SO4 is 95% concentration in liquid form. In the event of spillage during bunkering, fog system is activated to coalesce and mitigate H2SO4 Gas from proliferating the area.



Serie 8 is specifically designed for Fine Fog production to withstand pressure up to 150 bar for prolong use.

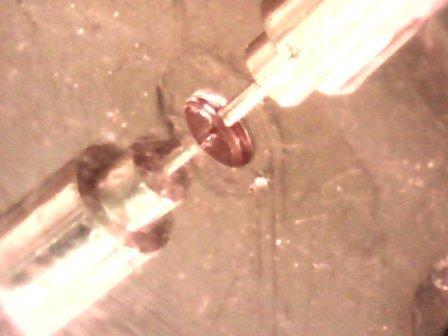

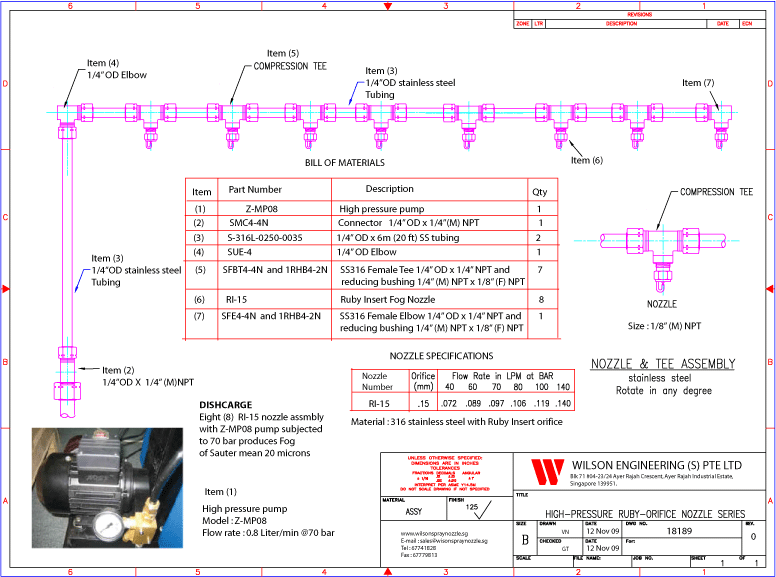

Constructed of full 316 stainless steel in its entirety, the Ruby Insert is Laser drilled to 0.2 mm orifice diameter and laser collimated with 3 steps impingement stem.
Critical mass fog explosion is produced when DI water or Distilled water is subjected to pressure above 50 bar.
Serie 8 has 5 microns polypropylene in-built filters.
Download Catalogue : Serie 8 .
drfghdfh
Download Price List and Cat -

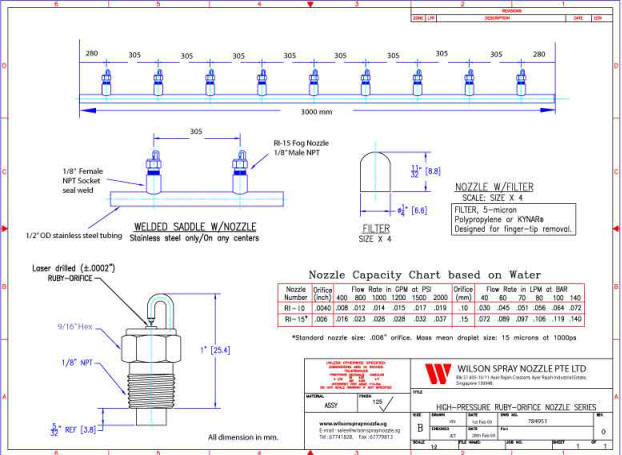

3m system Compression .pdf

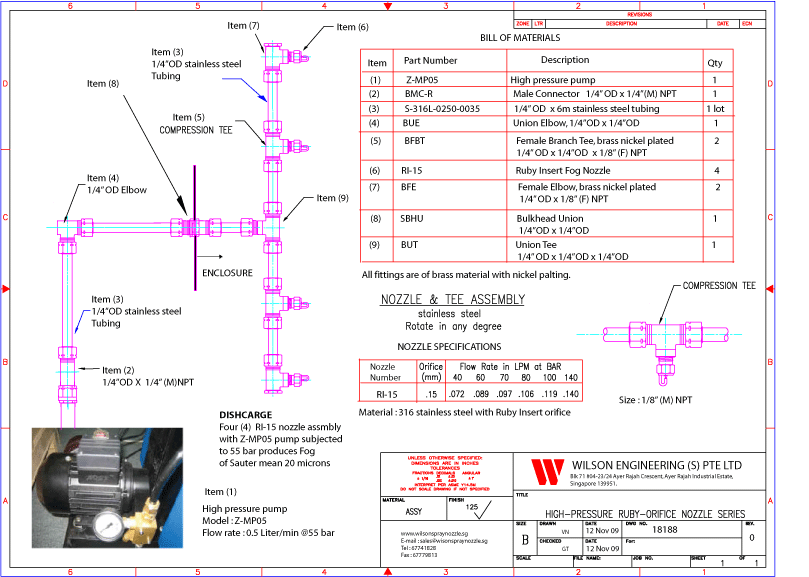

Schematic for

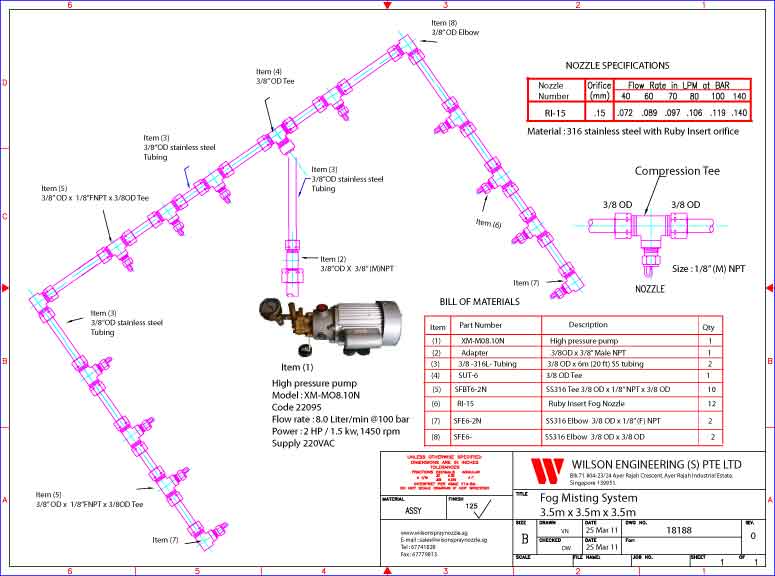

A) Fog skid enclosure - 3m x3m Fog

B) Mist skid enclosure - 3m x 3m Mist

Serie 8 Ruby Insert Fog Nozzles produce Fine Fog in Humidity controlled Urban Farming for Mushrooms cultivation.
Precise control of fine fog and temperature ensure healthy fungi rapid growth.



Seri8 Fog Cloud

Serie 8 Night Scene





LOW COST DIS-INFECTANT SPRAY BOOTH

The key feature of our disinfectant fog system is that it discharges FOG and not mist.

No wastage of expensive disinfectant, pedestrians walking through will not slip or fall as the floor will not be wet

1) System is automated with photo-cell sensor complete with Fog Nozzles, photo-electric sensor, junction box with manual control switch, relay, high pressure pump, stainless steel tank, stainless steel tubings, valves and accessories.
Easy plug to single phase

Power supply 230 VAC/50Hz/1 phase .

System delineate above is S$2,500 per system.

2) Modular spray booth is easy to install at site.

Dimension is 800mm (Width - entrance/ exit), 1400mm (length) x 2000mm (height) Frame is constructed of aluminium profile.Entrance and exit is installed with collapsible rubber barrier.Sides are enclosed with transparent canvae.

Spray booth S$900.00 per unit

Download Catalogue : FOG DISINFECTANT BOOTH.pdf



Download Price List -  3m SS Tubing Price pdf
Fog Production Fog Product



Fog Cannon for 5m.
This is a light duty fog generating module trajecting fog at a distance of 5 to 7m with dense fog with no wind draft. .
It is low cost sold as parts and easy to install for customer's own assembly. Large Critical mass of fine fog generated through our Ruby Insert Fog Nozzles traject high velocity .

Self contained with 41 liter water container, driven by single phase electric motor discharging 8 liter/min @100bar through seamless stainless steel tubing with nine (9) qty of R-50 Fog Nozzles inter-connected by compression fittings for customer's own assembly.

Suitable dust suppression at construction site, incineration plant, wood dust, marble dust etc. It is portable, easy to assemble and easy to use for fast setup.

Download price list : Portable 5m Fog Cannon .pdf





Both Spraying at 100bar

Serie 8 Ruby Insert Fog Nozzles are used in the above video with 7 nozzles

R-50 fog nozzles (without ruby insert) are used in the below Video with 9 nozzles

Observe the difference in spray angle and fog mass





An Assembled basic module as seen below  takes us five days to hook up and cost is about S$7,000.  If added features such as Serie 8 Ruby Insert Fog Nozzles, high pressure pulsation dampener and reservoir, Two (2) microns suction filtration stages, float valve for water inlet continuous flow etc would cost about (Singapore Dollars) S$11,000.
Fog Cannon for 100m.
SCY-100 is heavy duty fog generating cannon trajecting fog at a distance of 100m
Spray droplets ranging from 30 to 150 microns covering 25,200 sq m.
Powered by a heavy duty pump discharging water at a rate of 200 liters/min @ 35bar through three (3) rings array of atomising nozzles, large critical mass of fine mist is produce. With the large inline turbine generating air flow of 3050m3/min, high velocity critical mass of mist coalesce effectively with floating dust particulates.

The panning of 320 degrees and tilting angle of +45 degrees allow mist projection at great fexibility.
It has local control features and a user friendly remote control module
With IP-55 ingress protection, SCY-100 is designed to work in demanding weather conditions.

Mainly used in construction sites, demolition, mining, fire suppression, landfill, composting.

Download Catalogue : SCY-100 Fog Cannon.pdf

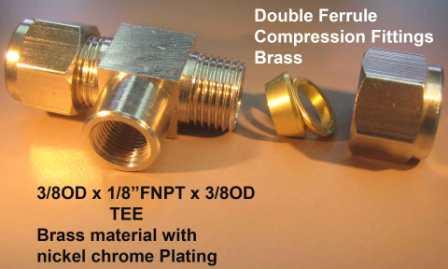

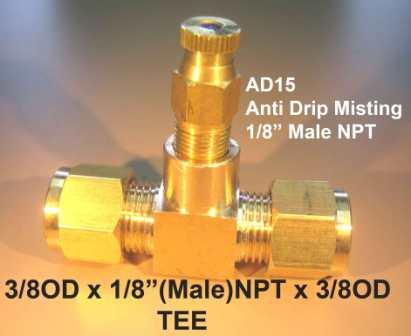

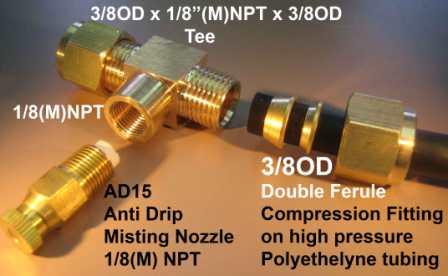

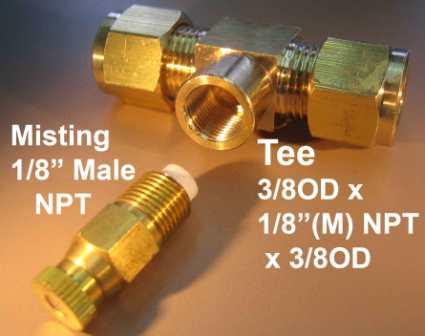

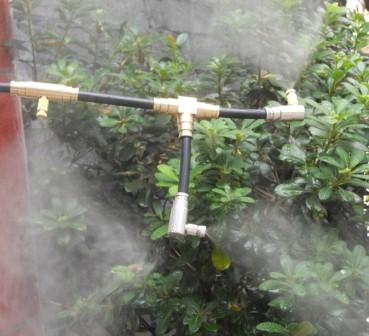

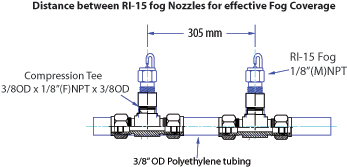

High Pressure Compression Fittings

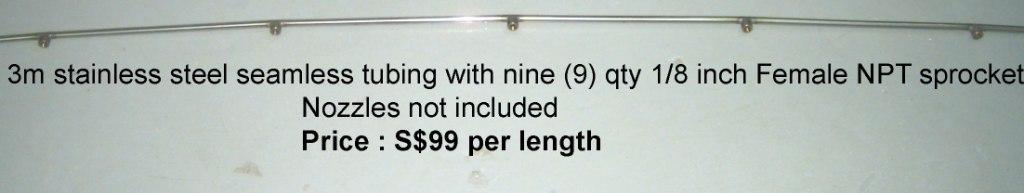

Stainless steel seamless tubing
Download Price : 3m System Price List. pdf
Size : 1/8 (Male) NPT Ruby Insert Fog Nozzle
Download - Nozzles, Compression fittings and pump price list pdf
