DECK and HULL COOLING in accordance to NFPA 15 page 11 to 15
NFPA chapter 15 page 11 to page 15  DESIGN and INSTALLATION clause 4-4.3.2 VESSELS delineates;

(a) These rules for exposure protection contemplate emergency relieving capacity for vessles, based upon a maximum allowable heat input of 6,000 BTU per hour per sg ft (18,930 W/sq m) of exposed surface area. The density shall be increased to limit the heat absorption to a safe level in the event required emergency relieving capacity is not provided.

(b) Water shall be applied to VERTICAL or INCLINED vessel surfaces at a Net Rate of Not less that 0.25 Gallon per minutes per sq ft (10.17 Liter per minute per sq meter) of exposed un-insulated surface.

HULL SIDE  COOLING NOZZLES  -145 degrees FAN

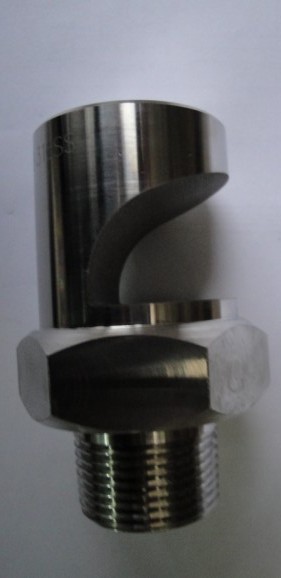

Large Angle Deflection Principle – Type FW

FW flat jet nozzles work on the deflection principle conveying a stream of water onto a machined deflecting surface, producing a wide angle flat spray pattern having low impact value and small droplets. Their round orifice minimises the risk of clogging.

Typical Applications:- Producing Fire Curtain, Ship side cooling, bulk head cooling, Oil Rig Hull Cooling and washing of vertical surfaces, washing fruits, stones or any such material on a moving conveyor.

Connection: 1/8" to 1" BSP or NPT
Spray angles: 90° to 140°
Material: PVC, PP, 316 Stainless Steel, Brass

DOWNLOAD CATALOGUE - FW_Series.pdf
DECK TOP  COOLING NOZZLES  - 90 degrees FULL CONE
T series is spiral through hole non clog open orifice nozzles for unobstructed flow passage.
Droplet sizes most effective for deck cooling
  • T48 Flow rate 574 Lpm @ 7 Bar
  • T56 Flow rate 777 Lpm @ 7 Bar
  • T72 Flow rate 758 LPM @ 3 Bar
  • T96 flow rate 1400 Lpm @ 3 Bar
  • 3 Circumference Spray with 170 degrees Full Cone
  • Atomise Droplets range 650 microns to 2000 microns
  • Height Trajectory upwards to approx 4m to 5metre.
  • 1" or 1 1/2" (Male) NPT connection
  • Brass or CuNi for Sea Water Application.
  • One piece construction,
  • Non Clog



DOWNLOAD CAT - T_Series.pdf

Adjustable Swivel joint rotating 70 degrees
Adjustable Swivel joint facilitates alignment of spray nozzles on the header pipe to the target surface.
Adjustment angles between 40 to 70 degrees free the guess work in nozzle locations.

Download Cat : Swivel Joint.pdf
Calculating the quantities of  HULL COOLING NOZZLES
Quantity and type of spray nozzles calculation as per NFPA 15 pg 11-15
Density to be applied on VERTICAL surface : 0.25 Gallon per minutes per sq ft (10.17 Liter per minute per sq meter)

Brief Case Example
Specifications
     Hull  Vertical surface area = 24,085 sq ft (2237.54 sq meter)
     Hull height                                   : 16.0 meter
     Height of water spray pipe ring : 12.35meter

Hence System water flow discharge rate = 24,085 x 0.25  = 6,031 gallon per minute (22,797Liter/m)

Other parameters in consideration such as,
- length of pipe ring : 4.14 x 57.7 = 181.2m
- No of Riser : 4 each
- Length of pipe ring per riser : 181.2 divide by 4 = 45.3meter

Select Wilson Wide Angle Fan  Nozzle FW series
            Model : 3/4FW500-145
            Flow rate : 189 liter/min @ 3 bar
            Size : 3/4 inch male Npt
            Material : Brass
            Spray angle : 145 degrees Fan

Download Catalogue : FW_Series.pdf

Therefore total number of nozzles required @ 3bar = 22,797 divide by 189 = 120 pieces .
Allow for thirty percent (30%) spray overlap, add additional nozzles as fit

Note : calculation delineated above is to ascertain the number of nozzles only, pressure loss in the pipe system need to be calculated separately.
Calculating the quantities of  DECK COOLING NOZZLES
Quantity and type of spray nozzles calculation as per NFPA 15 pg 11-15
Density to be applied on vertical surface : 0.25 Gallon per minutes per sq ft (10.17 Liter per minute per sq meter)

Brief Case Example

Deck surface area = 24,085 sq ft (2237.54 sq meter)
System water flow discharge rate = 24,085 x 0.25  = 6,031 gallon per minute (22,797Liter/m)

Select Wilson Spiral  Full Cone Nozzle "T" series
            Model : 3/4T32-150
            Flow rate : 166 liter/min @ 3 bar
            Size : 3/4 inch male Npt
            Material : Brass
            Spray angle : 150 degrees Full Cone

Download Catalogue : T_Series.pdf

Therefore total number of nozzles required @ 3bar = 22,797 divide by 166 = 137 pieces .
Allow for thirty percent (30%) spray overlap, add additional nozzles as fit

Note : calculation delineated above is to ascertain the number of nozzles only, pressure loss in the pipe system need to be calculated separately.
WATER CURTAIN HORIZONTAL 150 degrees Flat Fan
WC Series Water Curtain Nozzle distributes water in a flat curtain with 150 degrees Fan spray.

Water Curtain Nozzle when mounted in pendent position acts as a window spray nozzle. The nozzles when mounted in horizontal position with flow towards ground, a flat water curtain is produced to segregate the area which is under fire.
Size : 1/2" or 3/4 inch Male NPT, BSP
Material :Brass, Stainless Steel

Download Catalogue - Water Curtain.pdf
WATER CURTAIN HORIZONTAL 240 /300 degrees Flat Fan
WILTEX Series of Water Curtain Horizontal Flat Fan Spray designed for 240 degrees Fan and 300 degrees Fan. With a K factor of 23 and K-27 has an external deflector which discharges water in a horizontal flat circular shaped pattern of small droplet size.
Mounted horizontally to uniformly distributed water spray to form a water wall over the surface to be protected.

Application : Water droplet wall to prevent dust inflow,
mitigation of fumes or inbound toxic gas or wall curtain

WILTEX 300 FLAT FAN
Size : 1/2" (M) NPT or BSPT
Spray angle : 300 degrees Flat Fan
Material : brass or stainless steel
Download Catalogue
Wiltex 300 Flat.pdf
WILTEX 240 FLAT FAN
Size : 1/2" (M) NPT or BSPT
Spray angle : 240 degrees Flat Fan
Material : brass or stainless steel
Download Catalogue
Wiltex 240 Flat.pdf
