SPRAY TEST
Spray Test Booth
To determine spray angle, types of spray, droplets size spectrum and droplets spread and velocity

Nozzle Spray test conducted with supervisory controls. Readings from the pressure and flow transmitter are continually recorded.
Verification of Nozzle orifice diameter

Rosemount Orifice plates of various bore sizes are used to prove the nozzle orifice diameter in a real time setting. An Orifice Flange Union holds orifice plates in place for easy installation.

Each orifice plate is inscribed the bore diameter ranging from 12mm to 100mm and other pertinent manufacturer data.
In our spray test set-up, when a pre-set pump pressure flows thru a selected orifice plate of a certain bore size, the flow  meter will register the appropriate flow reading

Repeated test of changing the orifice plate of various bore diameter enable accurate flow confirmation.
The accuracy shall be within 0.5% of the actual flow or 0.25% over the flow range.
SPRAY PATTERNS

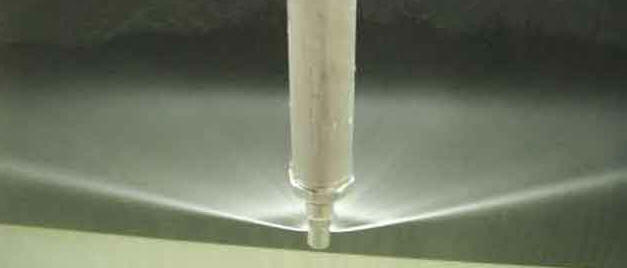

Tangential : 1CXSXJB12 at 2 bar (60 deg Hollow Cone)

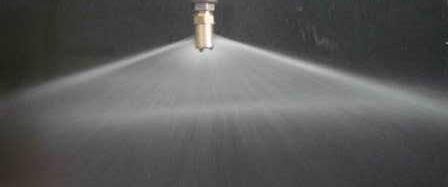

Internal Vane : 1 1/2SC16-120 at 2 bar (90 deg Full Cone)
